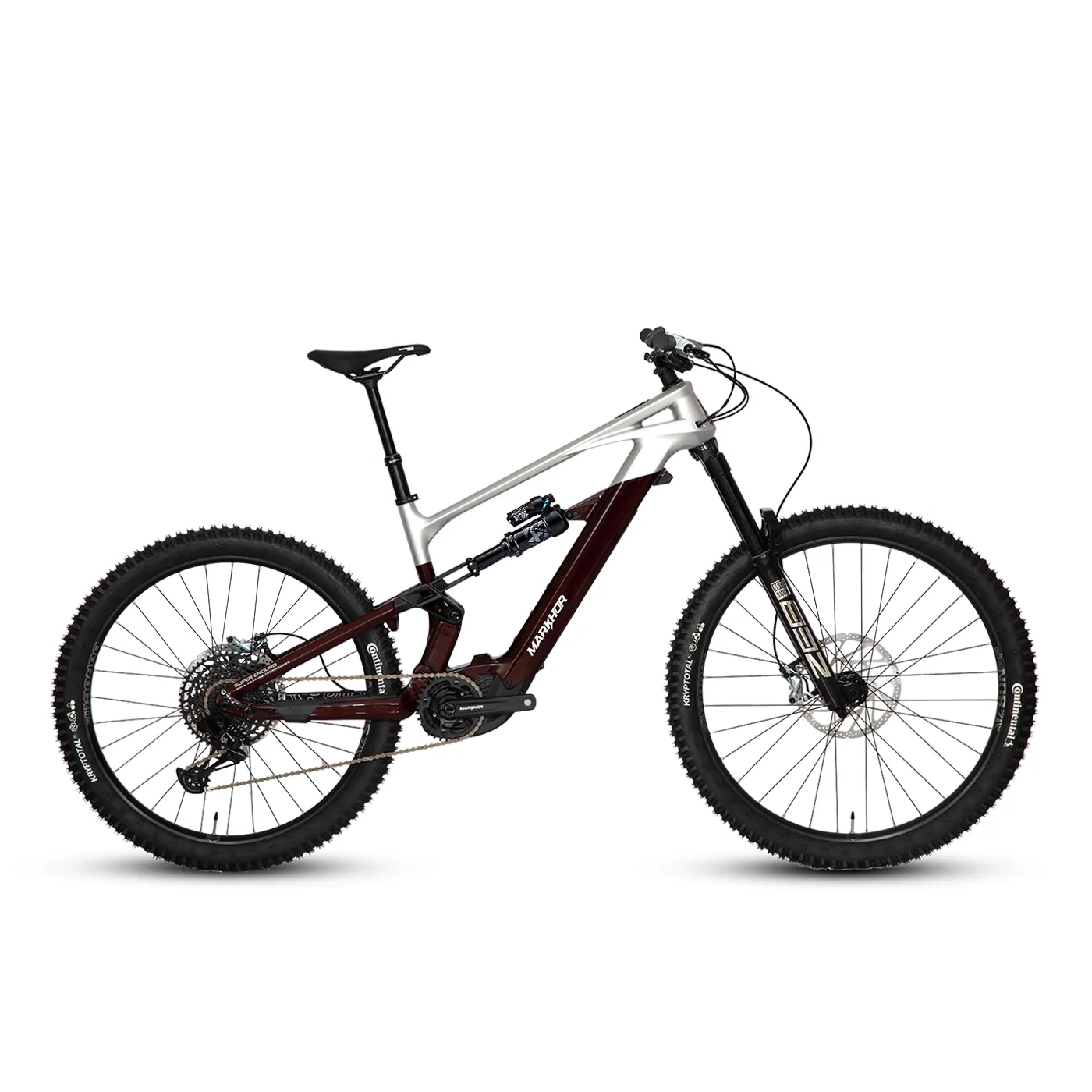

KUN LUN-PRO

It is a custom product, after payment, about 15 days to ship, please contact customer service to confirm the delivery time. The default shipping method is DDP by sea., transportation time is about 45-60 days, except for special areas. Please communicate with customer service whether the delivery address can be delivered. Carton size : 164cm * 34cm * 87cm

£ 4499 GBP

Shipping/postage and taxes included

Size: S1 , S2 , S3

  • Colours
  • RED-SILVER
  • BLUE-SILVER
  • BLACK-SILVER

Motor

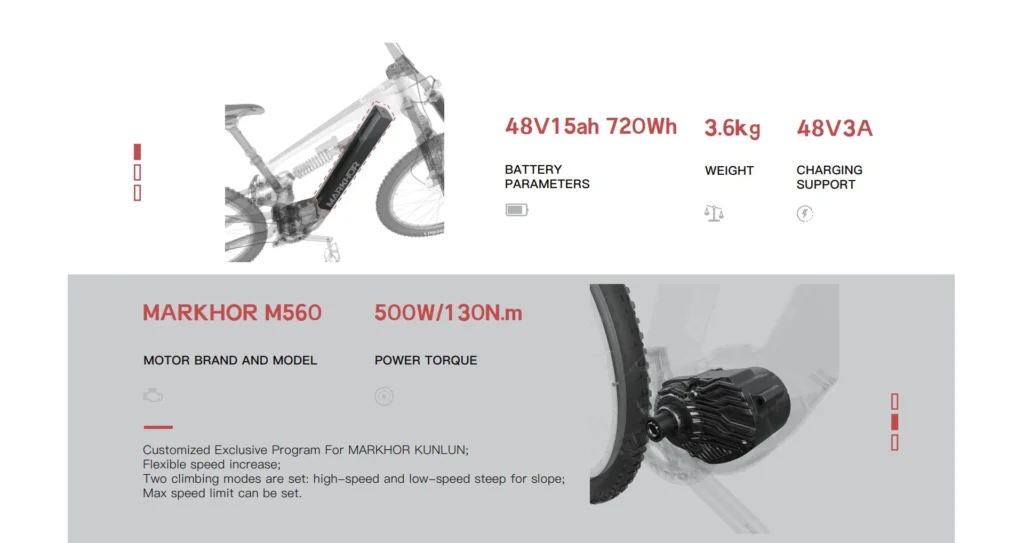

  • (M560 48V 750W)
  • Please contact the customer for shipping charges
  • Home delivery
  • Safe and comfortable fabric
  • Secure payments
Contact Us

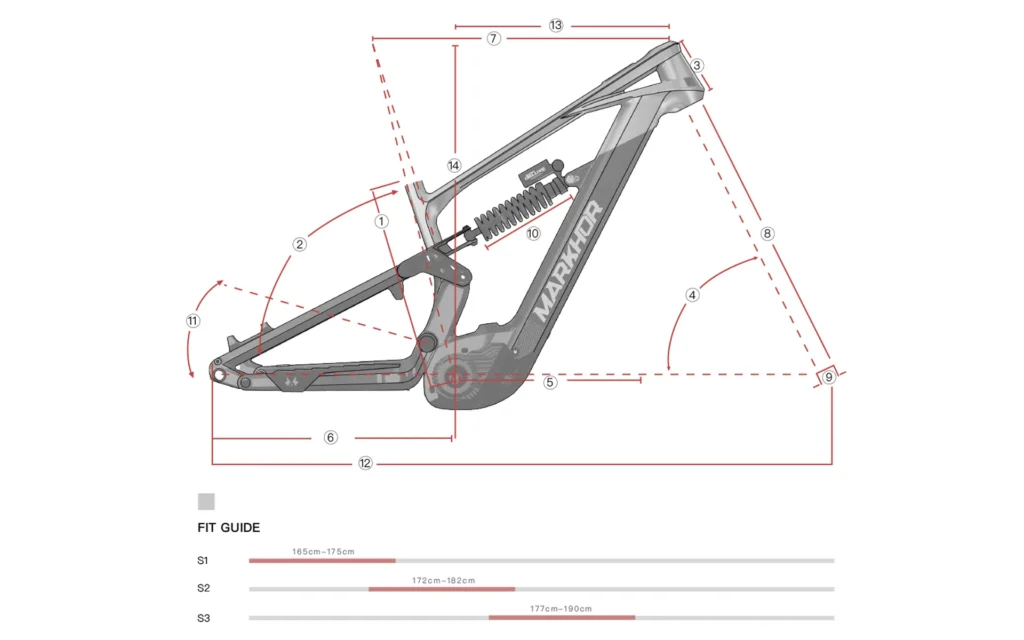

Bike Geometry Chart

Bike Geometry Chart

#SpecificationSML
1Seat Tube Length381mm425mm460mm
2Seat Tube Angle75°77°77°
3Head Tube Length130mm130mm130mm
4Head Tube Angle64°64°64°
5Bottom Bracket Offset-8mm-8mm-8mm
6Chain Stay Length (RC)454mm454mm454mm
7Top Tube Length (Horizontal)585mm614.8mm630.8mm
8Length Specified Fork + Headset585mm585mm585mm
9Offset Specified Fork44mm44mm44mm
10Length Specified Shock250/230mm250/230mm250/230mm
11Rear Wheel Travel175mm / 199mm175mm / 199mm175mm / 199mm
Maximum Allowed Front Fork Travel170mm / 200mm170mm / 200mm170mm / 200mm
12Wheelbase1214mm1272.5mm1301mm
13Reach411mm463.7mm479.7mm
14Stack651mm651mm651mm

Match:

Bike Specifications Table
#SpecificationDetails
1SizeS1 | S2 | S3

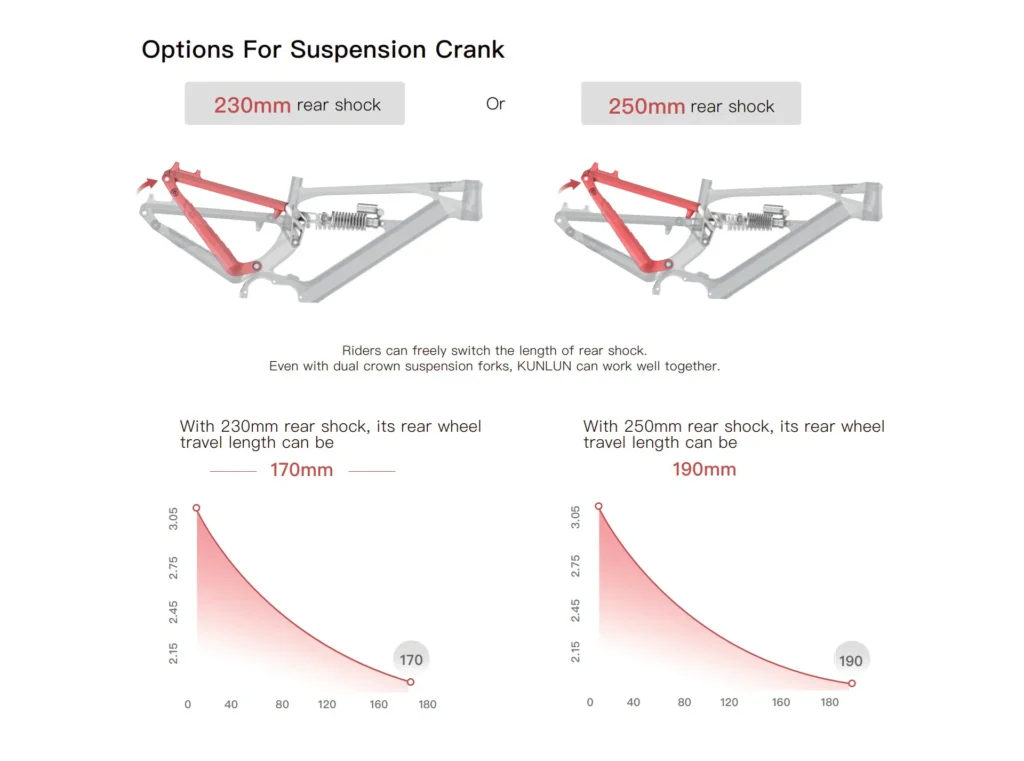

2Rear shock230mm x 65 OR 250mm x 75
3Rear shock liner22.2mm x M8
4HeadsetZ44 (UP) / Z56 (DOWN)
5Clampφ36.4mm
6Diameter of seat tubeφ31.6mm
7Wheel sizeF29" x 2.6" / R27.5" x 2.6"
8Original brake disc200mm
9Rear axle148x12
10Speed Measuring DeviceDisc Centrifuge
11Chainwheel38T at biggest
12Chain guideSupport
13FenderSupport
14Brake Wire LengthF≥85cm / R≥165cm
15Wire length for dropper seat tube≥180cm
16Wire length for seat tube≥136cm
